AusThai AT1800 New Ferry Boat Factory Direct

AusThai AT1800 Powercat


From $700,000 USD

NEW BUILD 8-9 MONTHS

HIGHLIGHTS - The AusThai AT1800 is an 18 meter / 60 foot commercial ferry catamaran built for high-capacity passenger operations. Seats up to 85 passengers, twin Yanmar 6HYM 600hp engines, GL HSC 2012 certified, 170,000 BTU air conditioning, 3 TVs, stereo sound system, and 12x 2,500 GPH bilge pumps. Available to order now!

Features

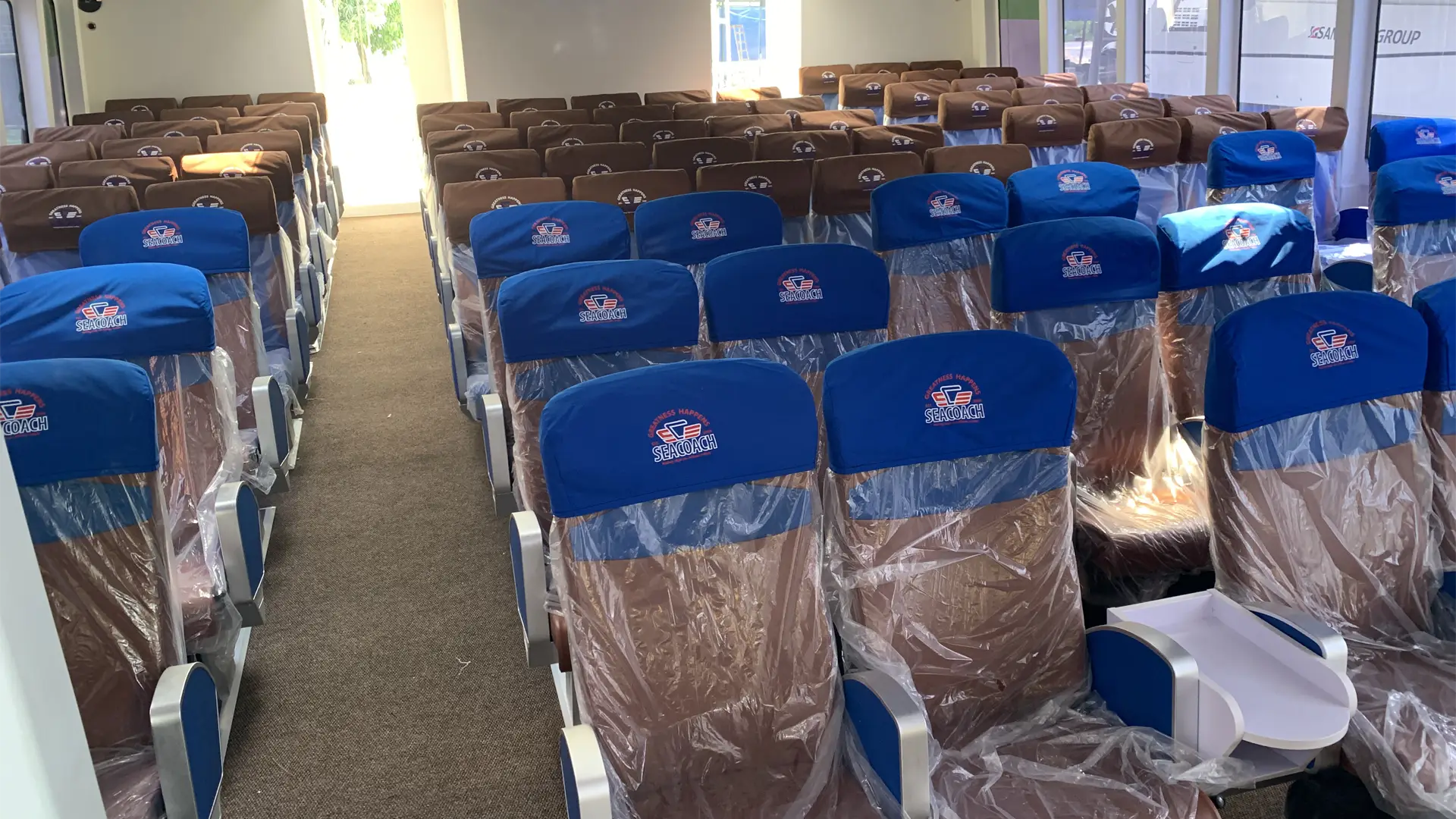

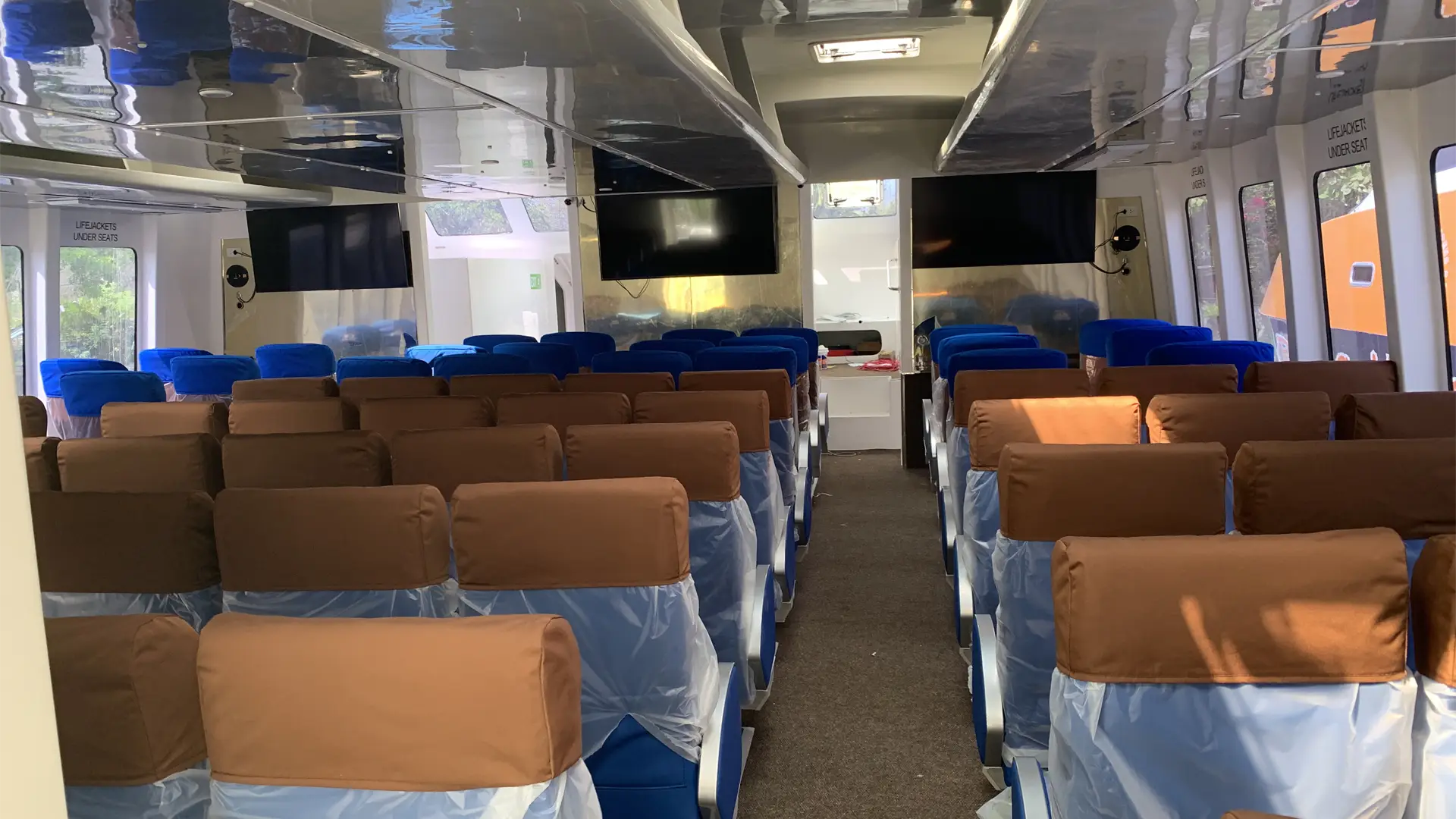

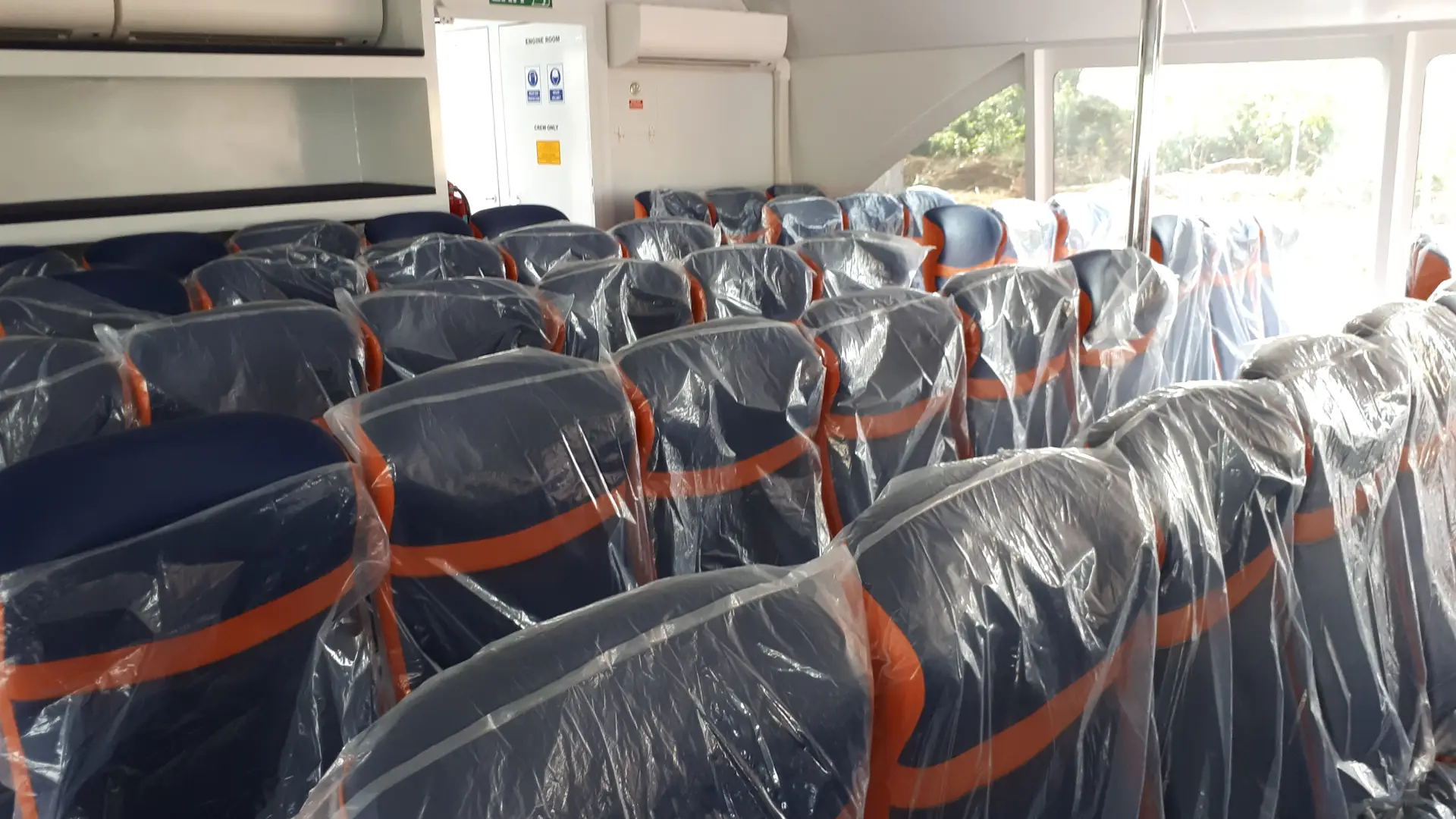

85 Passenger Capacity	Purpose-built commercial ferry catamaran. Moulded seating for up to 85 passengers
Length	18m/60ft LOA / 7.74m beam. Substantial, stable high-speed ferry platform
Engine	2 x Yanmar 6HYM 600hp each, proven high-output commercial diesel
Speed	17-25 knots under full load conditions
Air Conditioning	2 x Thermokingtech 260M with Blitzer F400 compressor and Model 2B clutch - 85,000 BTU each, 170,000 BTU total
Compliance	GL HSC 2012, Germanischer Lloyd High Speed Craft classification

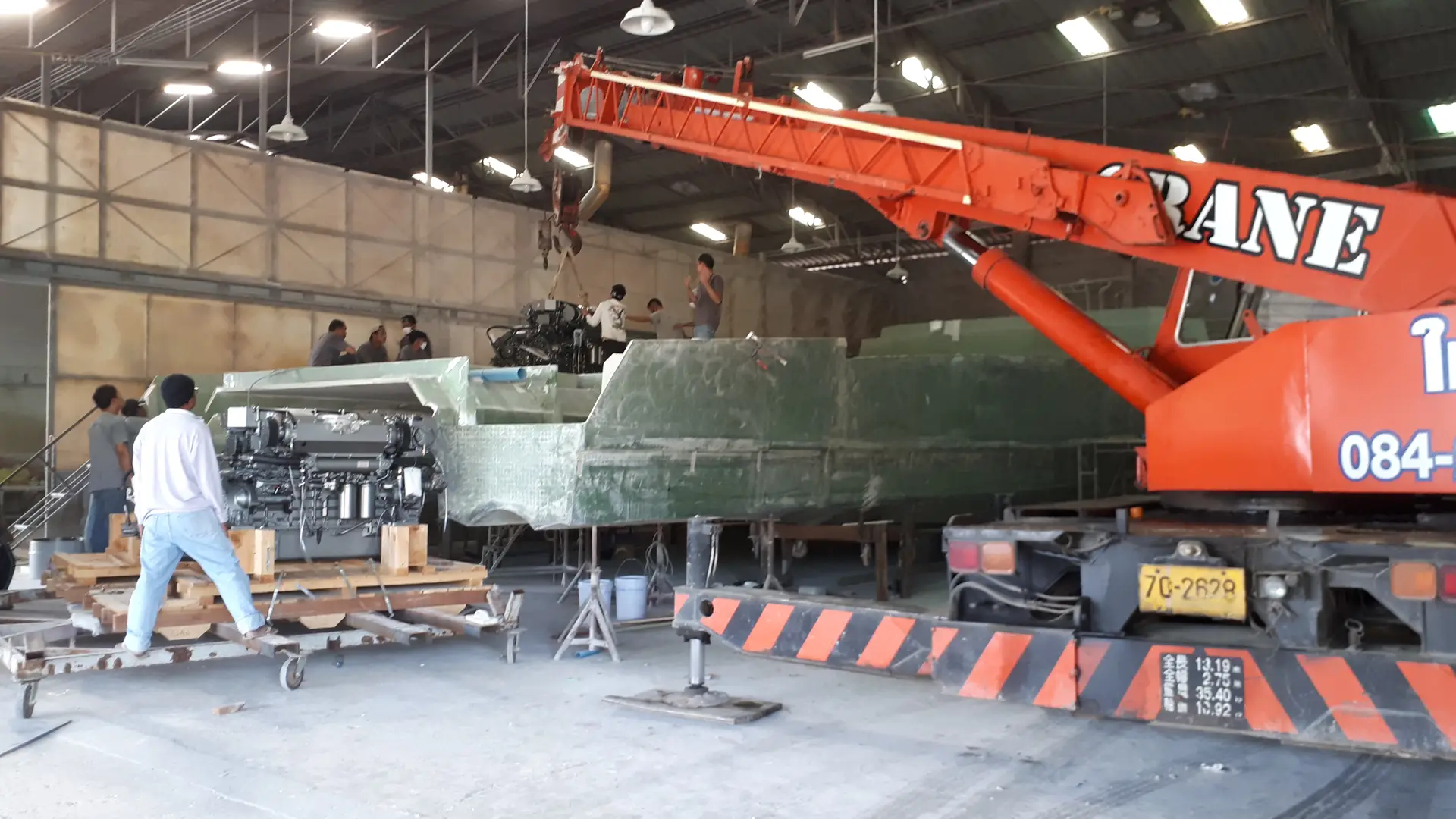

Construction	Vacuum infused PVC foam sandwich with E-glass and vinylester resin, same technology used across all Group Island Spirit catamarans.
Entertainment	Stereo sound system with 6 waterproof speakers. 3x televisions in main cabin. 20x USB double ports throughout.

Expand All Features

Builder	AusThai Marine
Model	AT1800
Length Overall	18m/60ft
Hull Length	17.93m
Waterline Length	17.45m
Maximum Beam	7.74m
Fuel	2x 1,000lt diesel tanks
Water	1x 430lt tank
Hull Material	Vacuum infused PVC foam, E-glass and vinylester resin
Compliance	GL HSC 2012 (Germanischer Lloyd High Speed Craft)
Passengers	Up to 85 seated
Air Conditioning	2x Thermokingtech 260M - 85,000 BTU each / 170,000 BTU total. Blitzer F400 compressor, Model 2B clutch.
Windows	Sliding to sides, fixed to front
Steering	Seastar Teleflex hydraulic steering with power assist and compensation valve
Bilge Pumps	12x TMC brand 2,500 GPH
Anchoring	Bow and stern anchors with chain and rode. 4x fenders. 4x mooring lines.
Navigation Electronics	Garmin GPS Map 7410XSV touchscreen with depth sounder. Icom 304 VHF radio. Ritchie Helmsman compass.
Navigation Lights	International standard. Cabin, toilet and deck lighting. Underfloor lighting. Twin roof-mounted mooring lights. Roof-mounted remote controlled searchlight. Aft deck floodlights over engines.
Toilets	2x TMC electric toilets with vanity sink
Electrical System	24V. BEP switch panels. 6x 150Ah sealed batteries. Shore power inlet. Battery charger. 20x USB double ports.
Deck Hardware	6x 12-inch stainless steel cleats. 1x stainless steel anchor bollard. Stainless tank fillers. Roof access ladder at rear.
Safety Equipment	6x fire extinguishers. 80x life jackets. 2x life buoys.
Entertainment	Stereo sound system. 6x waterproof speakers. 3x televisions in main cabin.

Propulsion

Engine	2 x Yanmar 6HYM
Horsepower	600hp each / 1,200hp total
Fuel Type	Diesel
Fuel	2x 1,000lt tanks
Speed	17-25 knots (full load)
Steering	Seastar Teleflex hydraulic with power assist and compensation valve

Expand All Propulsion

Engine Room Lighting	Aft deck floodlights over engines
Bilge Pumps	12x TMC 2,500 GPH
Battery System	6x 150Ah sealed batteries. Shore power inlet. Battery charger.

Configurations

Passenger Ferry	Large format passenger catamaran carrying up to 85 passengers plus 2 crew. Wide 7.64m beam provides exceptional deck space and passenger comfort. Suited for high-capacity island ferry routes, resort transfers, marine tourism operations, and scheduled passenger services across Southeast Asia.
Day Charter / Excursion	85 passenger capacity with generous freeboard and open deck areas for snorkeling, diving, and marine excursion operations. 2 x 1,000L fuel tanks provide extended range for full-day and multi-stop itineraries. Suited for premium day charter operators, hotel marine fleets, and island hopping excursion services.
Hull Construction	Built to GL HSC 2012 certification standards. ISO 8666 measurements compliance. Maximum load 9,500kg. Loaded displacement 28,000kg.
Engine Configuration	Twin 6HYM Medium duty engines, 2 x 478kW (650HP). Maximum design speed 30 knots at minimum operation condition, 25 knots at loaded displacement. Recommended cruising speed 15.17 knots.
Tankage	Fuel: 2 x 1,000 litres. Water: 400 litres. Waste tank fitted.
Build Lead Time	8-9 months from commencement. Commencement date subject to factory schedule at time of order.
Certification	GL HSC 2012. Built to ISO Small Craft International Standards. Category B Offshore rated.
